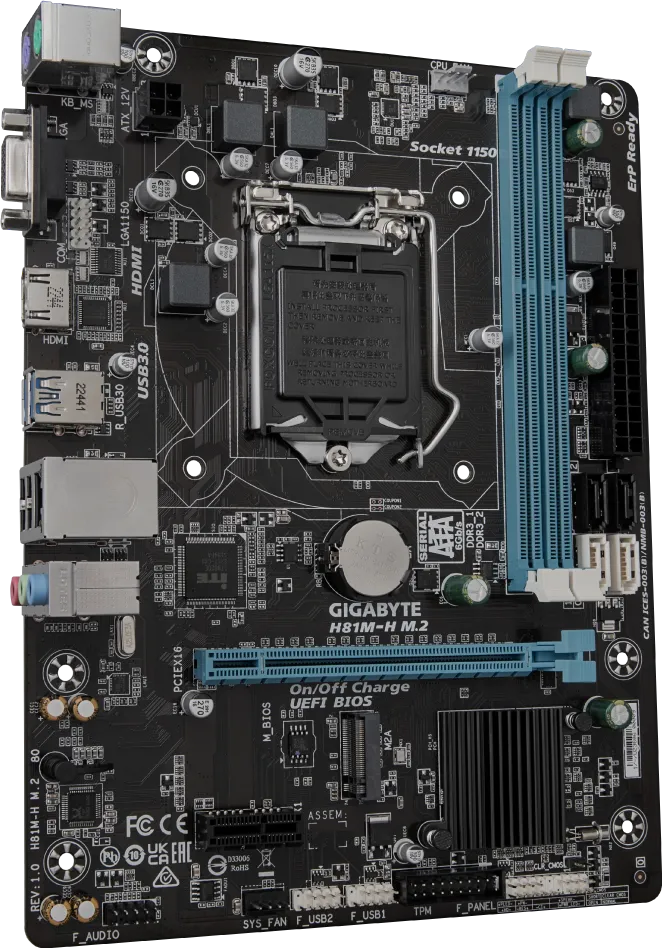

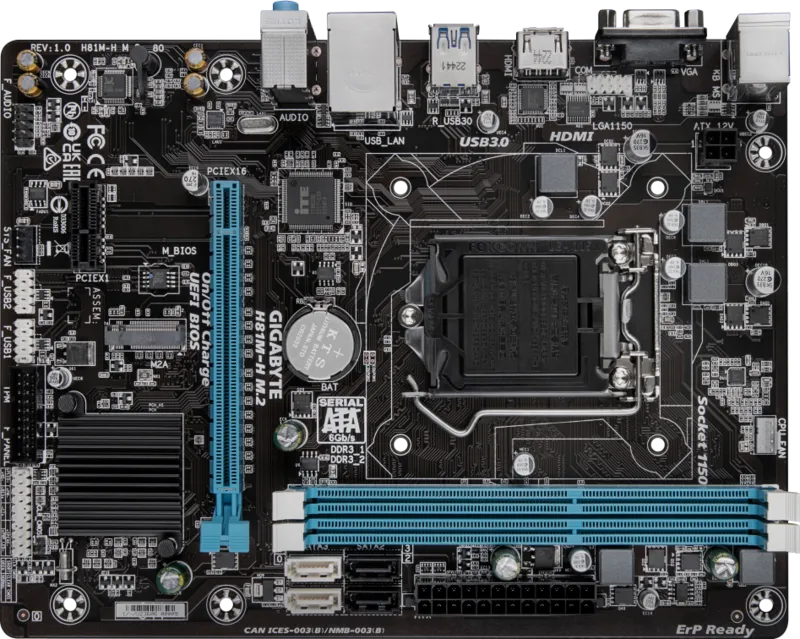

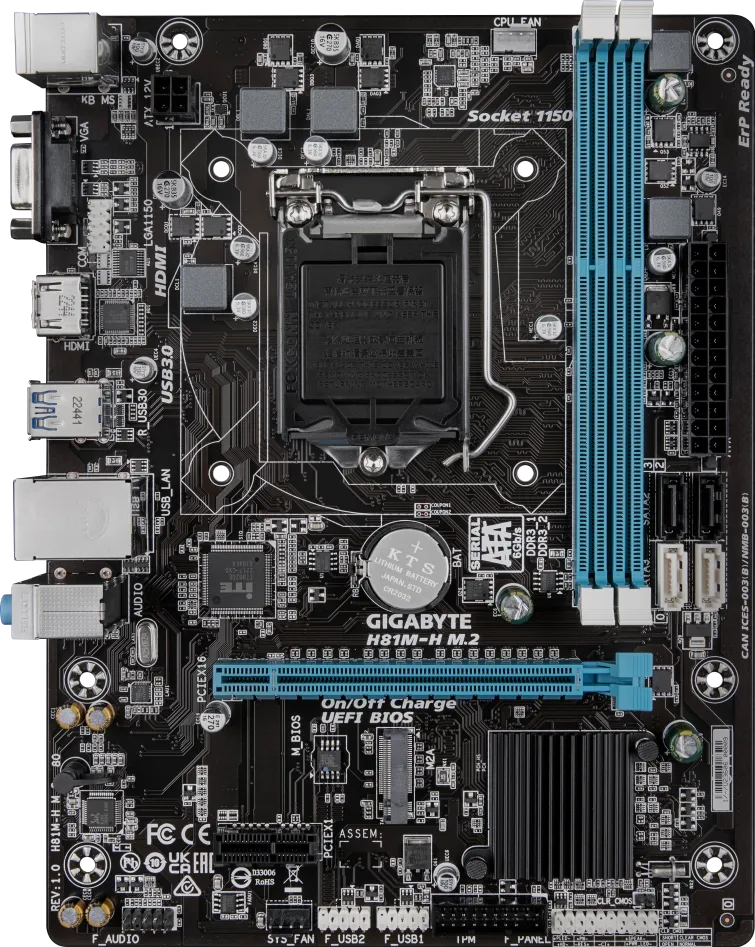

Gigabyte Intel GA-H81M-H M.2 DDR3 Motherboard
Price: 9,000৳
Status: In Stock
Code: Gigabyte Intel GA-H81M-H M.2
Brand: Gigabyte
Key Features
- Supports 4th Generation Intel® Core™ processors
- GIGABYTE Ultra Durable™ Technology
- GIGABYTE UEFI BIOS
- GIGABYTE On/Off Charge™ for USB devices
- LAN with high ESD Protection
- NVMe PCIe Gen2 x4 M.2 Connector

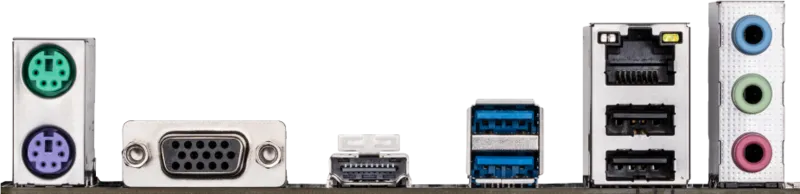

- HDMI, D-SUB port on rear panel
- Solid capacitors for CPU VRM design
9,000৳
9,500৳
Total Price
9,000৳
Technical Specification
Model
H81M-H M.2
CPU
Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
Chipset
Intel® H81 Express Chipset
Memory
2 x DDR3 DIMM sockets supporting up to 16 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200 1 x HDMI port, supporting a maximum resolution of 4096x2160 * Support for HDMI 1.4a version. Maximum shared memory of 1 GB
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Warranty
3 years
