GIGABYTE H610M K DDR5 Micro ATX Motherboard

Price: 10,200৳
Status: In Stock
Code: GIGABYTE H610M
Brand: Gigabyte

Key Features

  • Supports Intel® Core™ 14th/ 13th /12th processors
  • Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​
  • GbE LAN with Bandwidth Management
  • NVMe PCIe 3.0 x4 M.2​
  • High Quality Audio Capacitors and Audio Noise Guard​
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​
  • GIGABYTE APP Center, Simple and Easy Use​
  • Anti-Sulfur Resistors Design​
10,200৳ 10,700৳
Total Price 10,200৳

Technical Specification

Model
H610M K V2
CPU
LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors * Please refer to "CPU Support List" for more information. L3 cache varies with CPU
Chipset
Intel® H610 Express Chipset
Memory
14th and 13th Generation Intel® Core™ i9/i7 Processors: - Support for DDR5 5600/5200/4800/4400 MT/s memory modules 13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors: - Support for DDR5 4800/4400 MT/s memory modules 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules
Graphics
Integrated Graphics Processor-Intel® HD Graphics support: - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. ** Support native HDMI 2.1 TMDS compatible ports. - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz * Support for DisplayPort 1.2 version and HDCP 2.3 (Graphics specifications may vary depending on CPU support.)
Audio
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
Storage Interface
Chipset: 1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 3.0 x4/x2 SSD support) 2 x SATA 6Gb/s connectors
Warranty
3 years

Description

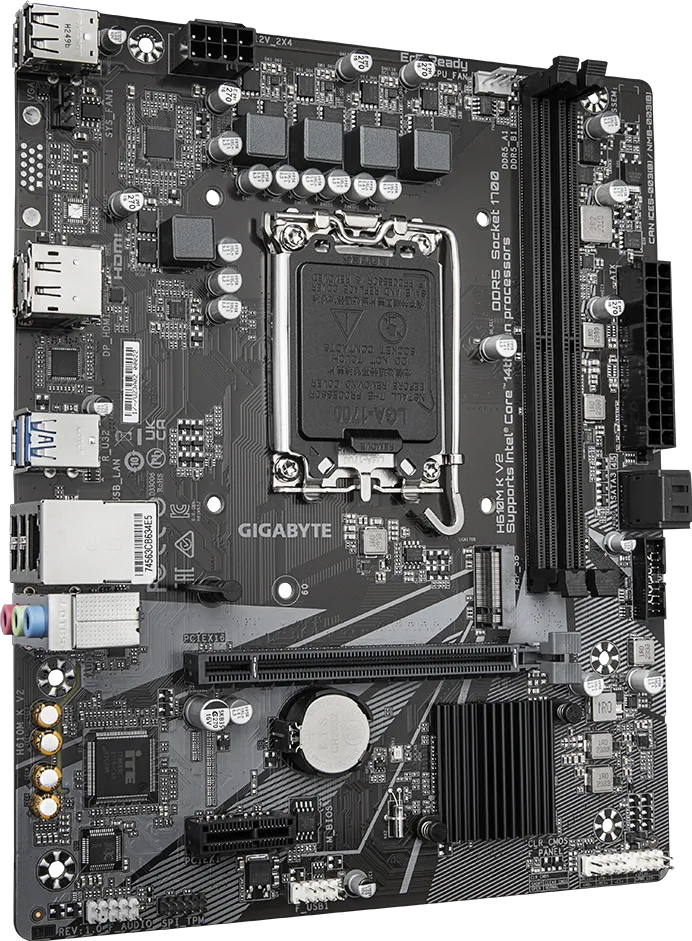

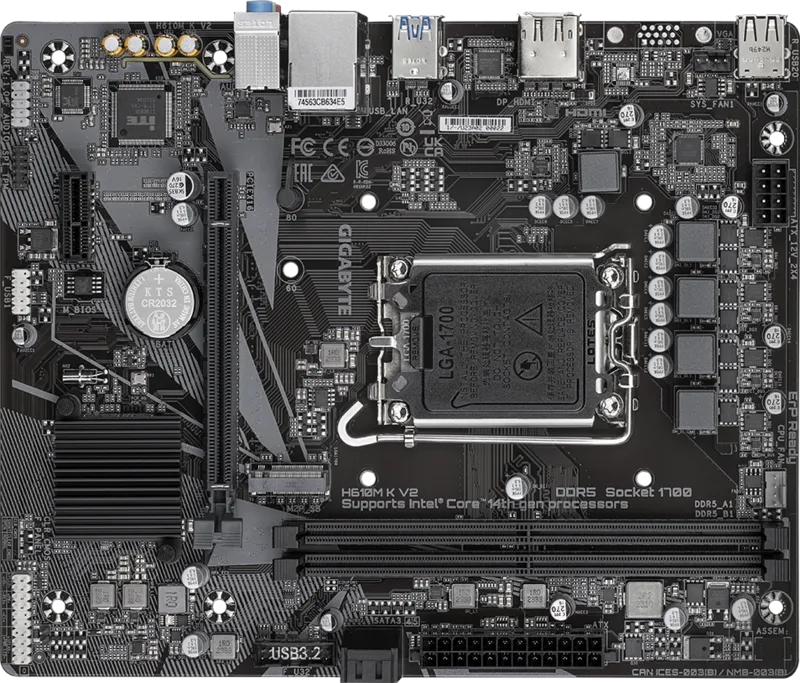

GIGABYTE H610M K DDR5 Micro ATX Motherboard

The GIGABYTE H610M K DDR5 Micro ATX motherboard is a compact and versatile platform designed to support the latest Intel processors, including the 14th, 13th, and 12th Gen CPUs with an LGA1700 socket. It provides robust performance and future-proofing for various computing needs, from gaming to content creation. This motherboard supports up to 4x DDR5 DIMMs, allowing for a maximum memory capacity of 64GB at speeds up to 3200 MHz, utilizing Dual Channel Non-ECC Unbuffered memory architecture. The GIGABYTE H610M K DDR5 features a single HDMI 2.1 port for high-definition graphics output and is equipped with a Realtek GbE LAN chip that supports up to 1 Gbps network speeds, with additional support for 100 Mbps connections and bandwidth management capabilities. It offers fast storage options through an NVMe PCIe 3.0 x4 M.2 slot, reducing load times for applications and games. High-quality audio capacitors and an audio noise guard ensure clear and immersive sound quality, enhancing the overall user experience. For efficient cooling and noise management, the Smart Fan 6 feature includes multiple temperature sensors and hybrid fan headers with a fan stop function. The motherboard also comes with the GIGABYTE APP Center, a user-friendly interface for managing system settings and features. Designed for durability, the GIGABYTE H610M K DDR5 incorporates an Anti-Sulfur resistor design, enhancing the longevity and reliability of the components. This motherboard is an excellent choice for building a high-performance PC with the latest technology and features.

KEY FEATURES:

Supports Intel® Core™ 14th/ 13th /12th processors

Dual Channel Non-ECC Unbuffered DDR5, 2 DIMMs​

GbE LAN with Bandwidth Management​

NVMe PCIe 3.0 x4 M.2​

High Quality Audio Capacitors and Audio Noise Guard​

Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP​

GIGABYTE APP Center, Simple and Easy Use​

Anti-Sulfur Resistors Design​
