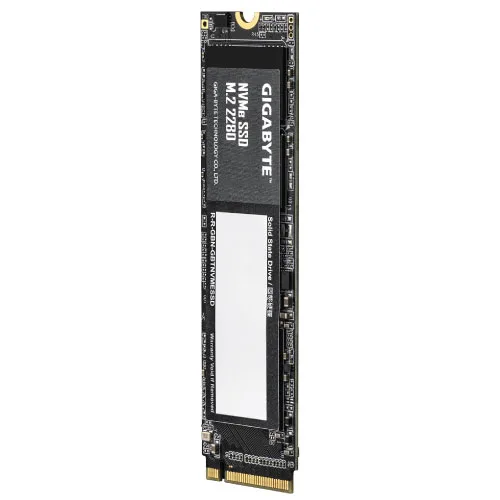

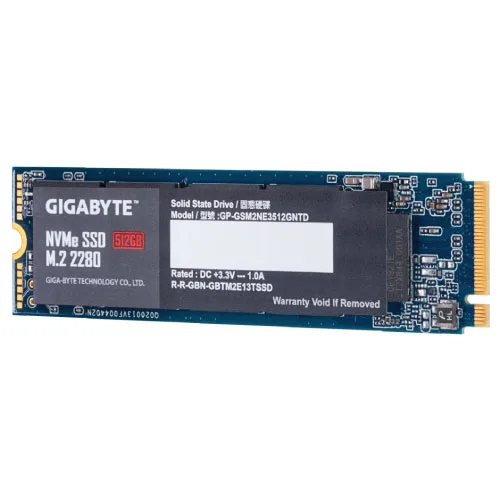

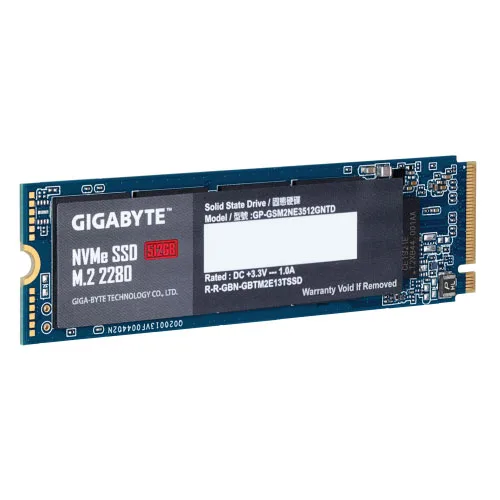

GIGABYTE 512GB M.2 PCIe 3.0 x4 NVMe 1.3 SSD # G3NVME512G

Price: 9,000৳
Status: In Stock
Code: G3NVME512G
Brand: Gigabyte

Key Features

  • Model: M.2 PCIe 3.0 x4 NVMe 1.3
  • Form Factor: M.2 2280, Total Capacity: 512GB
  • Interface: PCI-Express 3.0 x4, NVMe 1.3
  • Sequential Read Speed : up to 1900MB/s
  • Sequential Write speed : up to 1200MB/s
9,000৳
Total Price 9,000৳

Technical Specification

Form Factor
M.2 2280
Interface
PCIe 3.0 x4, NVMe 1.3 / 1.4
Total Capacity
512GB
NAND Type
3D TLC NAND Flash
Max Sequential Read
Up to 1,900 MB/s
Max Sequential Write
Up to 1,200 MB/s
Cache Architecture
DRAM-less with Host Memory Buffer (HMB)
Max Operating Power
Read: 3.2W / Write: 3.2W
Endurance & Lifespan
1.5 Million Hours MTBF / 160 TBW (Terabytes Written)
Dimensions
80 x 22 x 2.3 mm
Features Supported
TRIM, S.M.A.R.T, and Secure Erase
Warranty
3-Year Limited Manufacturer Warranty

Description

The GIGABYTE G3NVME512G is a budget-friendly, entry-level PCIe 3.0 NVMe M.2 internal solid-state drive. It belongs to GIGABYTE's standard consumer lineup and is designed as a fast, reliable storage upgrade for standard office desktops, laptops, and casual gaming rigs looking to move away from legacy SATA drives.

Key Features & Technology

  • Solid Gen3 Performance: Utilizing a PCIe 3.0 x4 interface combined with the NVMe protocol, this drive delivers up to 1,900 MB/s sequential read speeds and up to 1,200 MB/s sequential write speeds. This makes it roughly three to four times faster than a standard 2.5" SATA SSD.

  • Host Memory Buffer (HMB) Support: To offer a competitive retail price, it features a DRAM-less architecture. Instead of relying on a physical on-drive DRAM cache, it uses HMB technology to borrow a tiny fraction of your computer's main system RAM via Direct Memory Access (DMA) to keep file mapping snappy and fast.

  • Highly Reliable & Cool: Designed with 3D TLC NAND flash, it has a mean time between failure (MTBF) rating of 1.5 million hours. Because it draws very low maximum power (around 3.2W during operations), it runs remarkably cool without requiring a massive, bulky aluminum heatsink.

  • Comprehensive Management Utility: Fully compatible with the GIGABYTE SSD Tool Box and GIGABYTE Control Center (GCC). Users can check drive health metrics, monitor running temperatures, perform data optimizations, and deploy the Secure Erase function to wipe the drive safely.
